30W PoE Switch Pole Mounted Network Switch Box With 50W Heater And RS485 Control
Szczegóły Produktu:
| Miejsce pochodzenia: | Shenzhen, Chiny (kontynentalne) |
| Nazwa handlowa: | ESTEL |
| Orzecznictwo: | ISO9001, IP55 |
| Numer modelu: | ENSP0603 |
Zapłata:
| Minimalne zamówienie: | 1 |
|---|---|
| Cena: | negotiable |
| Szczegóły pakowania: | Drzewna obudowa |
| Czas dostawy: | 10-15 dni roboczych |
| Zasady płatności: | T/T, Western Union, Paypal itp |
| Możliwość Supply: | 8000 zestawów miesięcznie |
|
Szczegóły informacji |
|||
| Materiał: | Stal ocynkowana, podwójne ścianki z izolacją termiczną | Wejście alarmowe: | 3 kanały, wejście złącza suchego |
|---|---|---|---|
| Poziom ochrony: | IP55 | Dowód: | pyłoszczelny, odporny na słońce i deszcz |
| Kolor: | Biały | Wyjście alarmowe: | 1 kanał, wyjście złącza suchego |
| Wielkość zewnętrzna: | 700mm×420mm×250mm(wys.×szer.×gł.) | interfejs: | RS485/232 |
| Podkreślić: | Pudełko przełącznika sieciowego zamontowane na słupie,Pudełko przełącznika sieciowego RS485,Pudełko przełącznikowe z ogrzewaniem |
||
opis produktu

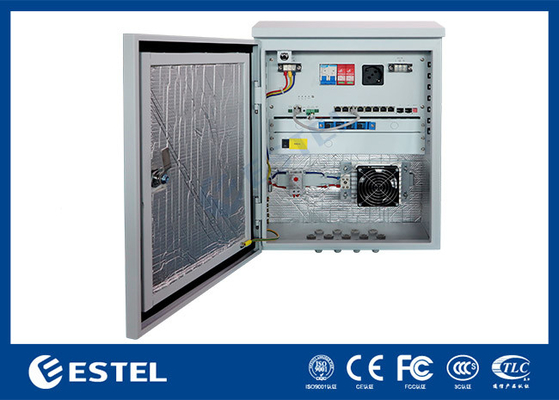

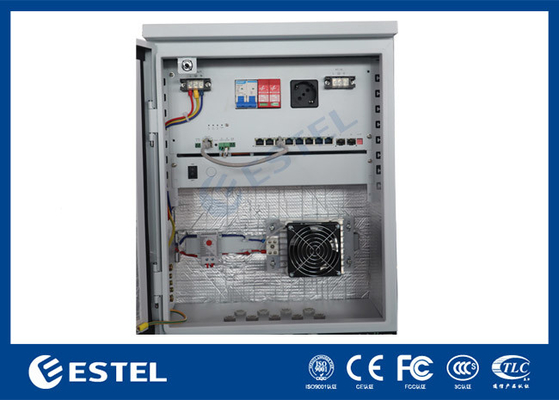

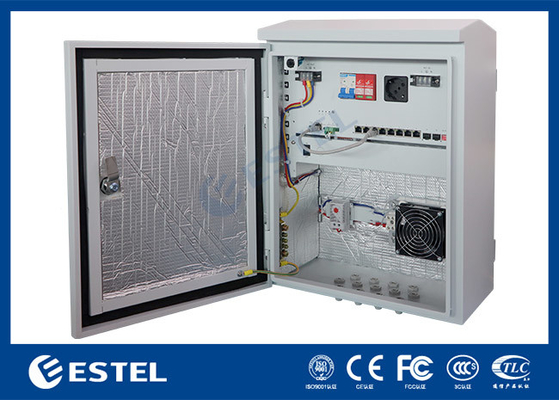

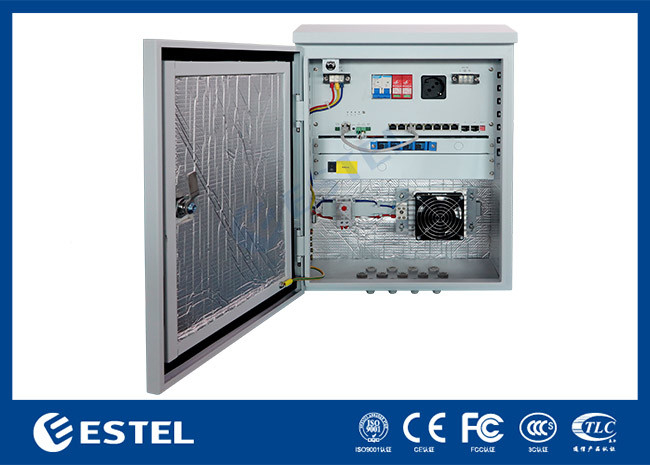

30W PoE Switch Pole Mounted Network Switch Box With 50W Heater And RS485 Control
30W PoE Switch Pole Mounted Network Switch Box With 50W Heater And RS485 Control Overview
Outdoor PoE switch
AC 100~240V, 50/60Hz, 10A IN;
With 8 *10/100M PoE ports and 2*1000M SFP ports;
240W power module with backup power
30W PoE Switch Pole Mounted Network Switch Box With 50W Heater And RS485 Control Feature
Provide 1 channel AC220V power input, 1 channels of AC power output ;
With 8*10/100/1000M PoE downlink ports and 2*1000M SFP ports, with L2 network management;
Supports L2 management, such as QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;
6KV surge protection, 6KV contact / 8KV air ESD protection.
The box adopts waterproof (protection level Ip55), anti-rust treatment, suitable for long time outdoor use.
30W PoE Switch Pole Mounted Network Switch Box With 50W Heater And RS485 Control Specification
| Parameter | Specifications |
| Power supply | AC power supply |
| Range of voltage | AC100~240V,50/60HZ |
| Power supply | With backup power, self-consumption<15W, PoE output 170W max |
| Heater and controller | 50W, with auto temperature controller |
| Fiber tray | 4*SC |
| Control unit | With door open/closed detecting, SPD detecting and RS485 |
| 10/100 network port | 1*10/100Base-TX |
| Connect | 13*PG7,waterproof |
| Reset key | >5s press recovery to factory default |
| Working temperature | -40℃~65℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(No condensation) |
| Dimension(H×W×D) | 500mm×380mm×220mm |
| Material | Metal |
| Colour | White |
| Net-weight | 15KG |
Switch Specification:
| Parameter | Specifications |
| Ethernet ports parameter |
1~8 ports: 10/100Base-T 30W PoE RJ45(IEEE802.3af/at) 9~10 ports: 1000M SFP slots |
| Working mode |
Extend: 1~8 ports Max. 250m transmission, 1~8 ports are isolated, only can communicate with the uplink ports; restrain the network storm; close flow control. Default: common switch. VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the network storm; close flow control. |
| Cable and distance | Use cat5e/6, 100m max. |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
| Switch fabric | 5.6Gbps |
| Though put | 4.2Mpps |
| Buffer | 12KB |
| MAC address table | 4K |
| Power | 1 *red |
| Uplink 9~10 | Green LEDs indicate Link/Act |
| Downlink 1~8 |
Green LEDs indicate Link/Act, yellow LEDs indicate PoE |
| Surge | 6KV, standard: IEC61000-4-5 |
| ESD | 6KV: contact / 8KV: air, standard:IEC61000-4-2 |
